In modern manufacturing systems, product precision, equipment efficiency, and component service life increasingly depend on advancements in surface engineering. As a critical method of surface treatment, hard coating technology has been widely adopted across industries such as cutting tools, molds, automotive key components, and 3C products. It serves as a key enabler for enhancing durability, reliability, and overall performance.
No.1 Technical Definition and Functional Positioning
“Hard coatings” generally refer to functional thin films deposited on a substrate via Physical Vapor Deposition (PVD) or Chemical Vapor Deposition (CVD) methods. These coatings typically have a thickness ranging from 1 to 5 μm, with high microhardness (>2000 HV), low coefficient of friction (<0.3), excellent thermal stability, and strong interfacial adhesion—significantly extending the service life and performance limits of the substrate materials.
Rather than merely acting as a surface “covering,” hard coatings are engineered with optimized layer structures, selected materials, and tailored substrate-coating adhesion mechanisms. This enables the coatings to withstand complex operating conditions while simultaneously delivering wear resistance, thermal stability, and corrosion protection.
No.2 Working Principles of Hard Coating
Hard coatings are primarily deposited using two main techniques: Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD).
1. Physical Vapor Deposition (PVD)
PVD is a vacuum-based process where coating material is evaporation, sputtering, or ionization and depositing a thin film on the substrate surface. The process typically involves:
Material evaporation or sputtering
Vapor-phase transport: Atoms/ions migrate in a vacuum environment
Film formation: Condensation and growth of a dense coating on the substrate
Common PVD techniques include:
Thermal Evaporation
Magnetron Sputtering
Arc Ion Coating
2. Chemical Vapor Deposition (CVD)
CVD involves introducing gaseous precursors at elevated temperatures to chemically react on the substrate surface, forming a solid coating. This method is suitable for thermally stable coatings such as TiC, TiN, and SiC.
Key characteristics:
Strong adhesion to substrate
Capability to form relatively thick coatings
High processing temperatures requiring thermally resistant substrates
No.3 Application Scenarios
In industrial environments involving high loads and high-frequency operation, components are subjected to friction, corrosion, and thermal shock. Hard coatings form a high-hardness, low-friction, and thermally stable protective layer that significantly enhances part performance and lifespan:
Cutting Tools: Coatings such as TiAlN and AlCrN greatly improve thermal resistance and wear performance, extending tool life by 2 to 5 times, reducing tool changes, and improving machining consistency.
Molds and Punches:TiCrAlN and AlCrN coatings reduce wear, galling, and thermal fatigue cracking—enhancing mold service life, part quality, and reducing downtime.
Automotive Components: DLC (Diamond-Like Carbon) coatings on components such as tappets, piston pins, and valve lifters lower friction and wear rates, extend replacement intervals, and improve fuel efficiency.
3C Consumer Electronics: TiN, CrN, and other decorative hard coatings on smartphone housings and camera bezels provide scratch resistance and corrosion protection while retaining a metallic finish for enhanced user experience.
Application Overview by Industry
|
Industry |
Applications |
Common Coatings Type |
Performance Enhancements |
|
Cutting Tools |
Turning tools, milling cutters, drills, taps |
TiAlN, AlCrN, TiSiN |
Improved wear resistance and hot hardness; 2–5 tool life |
|
Molding Industry |
Stamping, injection, and drawing molds |
TiCrAlN, AlCrN, CrN |
Anti-galling, thermal fatigue resistance, better precision |
|
Automotive Parts |
Piston pins, tappets, valve guides |
DLC, CrN, Ta-C |
Lower friction and wear, enhanced durability, fuel saving |
|
Molding Industry |
Stamping, injection, and drawing molds |
TiCrAlN, AlCrN, CrN |
Anti-galling, thermal fatigue resistance, better precision |
|
Automotive Parts |
Piston pins, tappets, valve guides |
DLC, CrN, Ta-C |
Lower friction and wear, enhanced durability, fuel saving |
|
Cold Forming Tools |
Cold heading dies, punches |
AlSiN, AlCrN, CrN |
Enhanced thermal stability and surface strength |
NO.5 Zhenhua Vacuum’s Hard Coating Deposition Solutions: Enabling
High-Performance Manufacturing
To meet the rising demand for high-performance coatings across industries, Zhenhua Vacuum provides advanced hard coating deposition solutions featuring high deposition efficiency and multi-process compatibility—ideal for precision manufacturing in molds, cutting tools, and automotive parts.
Key Advantages:
Efficient arc plasma filtering for macroparticle reduction
High-performance Ta-C coatings combining efficiency and durability
Ultra-high hardness (up to 63 GPa), low friction coefficient, and exceptional corrosion resistance
Applicable Coating Types:
The system supports deposition of high-temperature, ultra-hard coatings including AlTiN, AlCrN, TiCrAlN, TiAlSiN, CrN, among others—widely used in molds, cutting tools, punches, automotive parts, and pistons.
Equipment Recommendation:
(Customized system dimensions available upon request.)

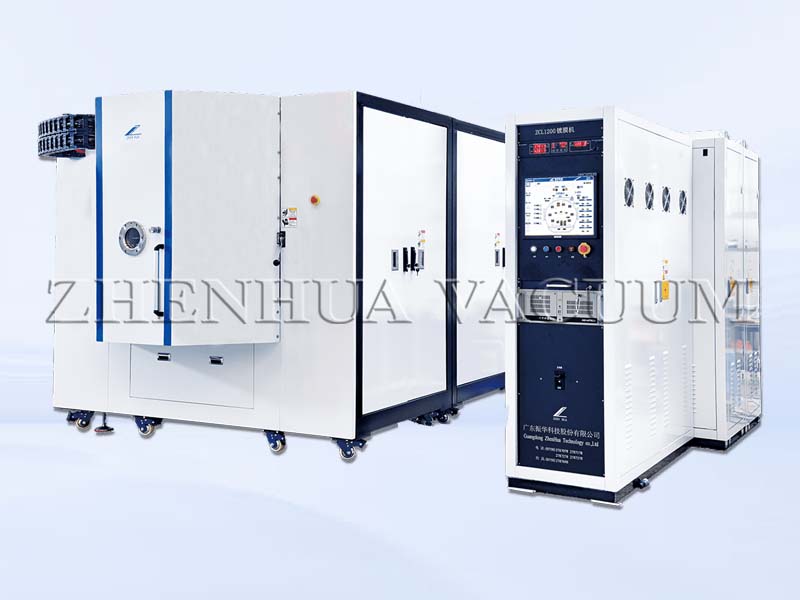

1.MA0605 Hard film coating PVD Coating Machine

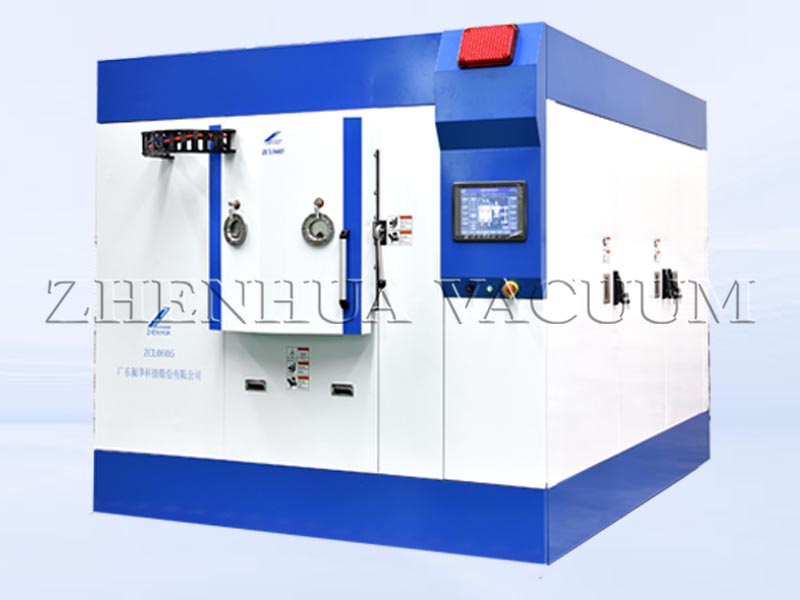

2.HDA1200 Hard film Coating Machine

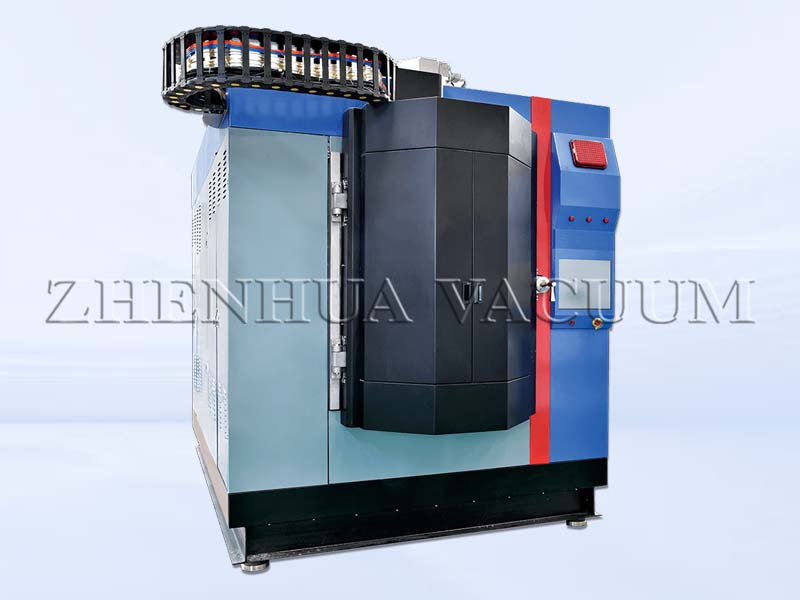

3.HDA1112 Cutting tool wear-resistant coating coating machine
–This article is released by vacuum coating machine manufacturer Zhenhua Vacuum.
