With the rapid development of smart devices, automotive electronics, and 5G communication technology, market demand for electronic components continues to grow. However, the continuous rise in raw material prices, especially the high volatility of silver prices, has placed significant cost pressure on traditional wet silver plating processes.
To ensure electrode conductivity and sulfurization resistance, conventional processes usually require the formation of a silver layer with a thickness of approximately 20 μm. However, this thickness has become a major cost burden in production.
Therefore, cost reduction has become an urgent priority. Especially under the dual pressure of cost control and performance requirements, manufacturers urgently need a solution that can ensure product quality while significantly reducing production costs.
To address this challenge, two major technical routes are currently developing in parallel within the industry. On one hand, through vacuum sputtering technology, the silver layer thickness can be reduced from the traditional 20 μm to less than 6 μm, while maintaining electrode performance. This significantly reduces silver consumption, with silver material usage reduced by approximately 70%.
On the other hand, magnetron sputtering copper coating technology can be used to completely replace silver electrodes. This solution not only effectively avoids the risks caused by silver price fluctuations, but also prevents silver ion migration and sulfurization failure.
For both technical routes, Zhenhua Vacuum’s continuous coating production line for ceramic capacitors and resistors provides an efficient solution.
Continuous Coating Production Line for Ceramic Capacitors and Resistors
1. Advanced Process for Lower Silver Consumption
By adopting Zhenhua Vacuum’s independently developed vacuum sputtering technology, the equipment can deposit two or more metal film layers on both sides of the workpiece within the same vacuum cycle.
Compared with the traditional wet silver plating process, the silver layer thickness can be reduced from approximately 20 μm to less than 6 μm, while maintaining electrode conductivity, durability, and sulfurization resistance. This greatly reduces silver consumption, with silver material usage reduced by approximately 70%.
2. Copper Electrode Replacement: Silver-Free Cost Reduction
Through magnetron sputtering copper coating technology, traditional silver electrodes can be completely replaced. This not only effectively avoids the risks caused by silver price fluctuations, but also prevents silver ion migration and sulfurization failure.
Compared with the traditional silver electrode printing process, magnetron sputtering copper coating significantly improves conductivity and reliability, delivers excellent sulfurization resistance, and reduces production costs.
The equipment supports a horizontal continuous coating production line configuration, is compatible with ceramic products of various specifications and sizes, and offers high production efficiency and large-scale production capacity.
3. Extensive Industry Experience and Technical Support
Zhenhua Vacuum has been deeply engaged in the vacuum coating industry for more than 30 years and has established a comprehensive process laboratory and an experienced engineering team, covering multiple coating technologies such as PVD, PECVD, and ALD.
We provide customers with full-process technical support from R&D validation and pilot production to mass production, ensuring process optimization and product quality control at every stage.
4. Customized Solutions and Technical Security
According to customer requirements, Zhenhua Vacuum provides flexible equipment and process customization services. By integrating multiple coating technologies, we can meet the production needs of different customers.
In addition, we strictly protect technical security to ensure that patents and confidential process know-how are not disclosed, providing customers with comprehensive technical support and confidentiality protection.
Application Scope

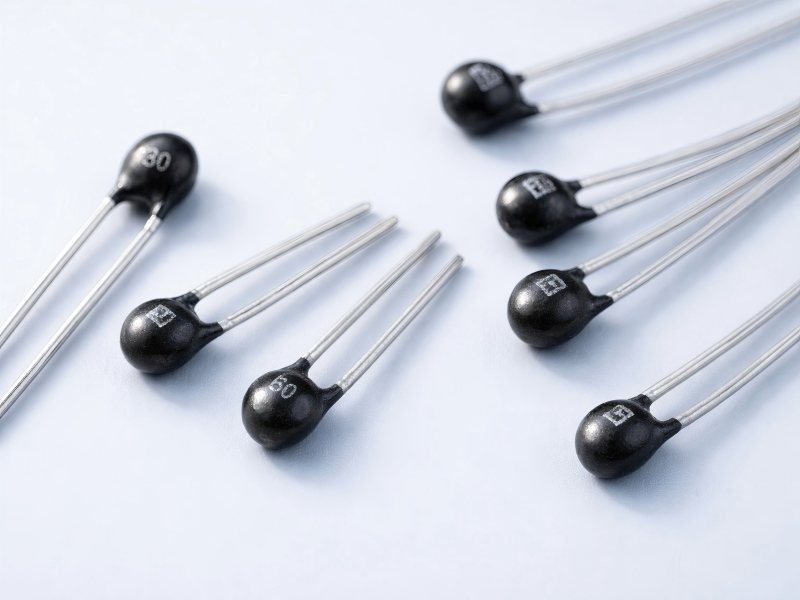

This equipment is suitable for the production of electronic components such as ceramic capacitors, varistors, thermistors, and thin-film resistors.
-This article was published by vacuum coating equipment manufacturer Zhenhua Vacuum
Post time: Apr-29-2026
