In recent years, the cosmetics market has placed increasing emphasis on visual impact. Color-shifting eyeshadows, iridescent nail polishes, and other effect products have gained strong popularity. Compared with conventional single-color pigments, color-shifting powders produce dynamic color transitions under different lighting conditions and viewing angles, giving cosmetic products greater visual recognition and stronger market differentiation.
This angle-dependent color effect is not created through conventional pigment blending. Instead, it originates from thin-film interference. Through vacuum deposition, multiple nanoscale optical layers are precisely deposited onto a substrate. The coated material subsequently undergoes stripping, crushing, classification, and powder-processing procedures, resulting in color-shifting pigments suitable for cosmetics, anti-counterfeiting labels, high-end decorative materials, and other applications.
From Pilot Production to Mass Manufacturing, Coating Process Stability Determines Consistent Output
Although color-shifting pigments may appear to involve only a change in color, their production places stringent requirements on the coating process. Film thickness, material combinations, and deposition stability all directly affect the final optical appearance. When production is scaled from laboratory trials to industrial manufacturing, equipment stability becomes a critical factor. Vacuum conditions, evaporation rate, film-thickness control, and stripping efficiency all determine whether consistent production output can be maintained. Therefore, a high-precision and highly repeatable vacuum coating system provides the essential foundation for the mass production of color-shifting pigments.

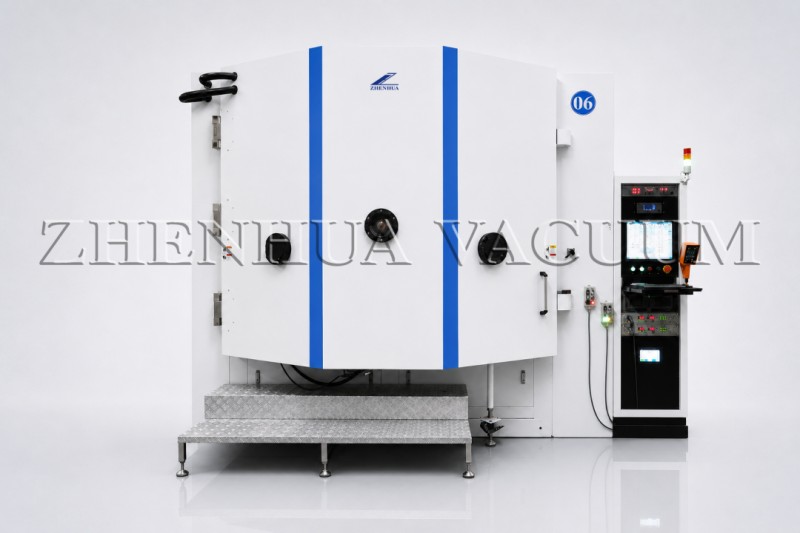

Zhenhua Vacuum GX2350 Optical Coating System Supports Efficient Mass Production of Color-Shifting Pigments
To meet the production requirements of color-shifting pigments, Zhenhua Vacuum has developed the GX2350 optical coating system. The equipment is suitable for manufacturing color-shifting cosmetic pigments, anti-counterfeiting materials, premium decorative pigments, and other optically variable products.
The deposition system employs high-energy electron-beam evaporation technology, enabling the evaporation of coating materials with melting points above 3,000°C. This technology supports the deposition of high-purity optical thin films with high thermal efficiency. Combined with a large-curvature dome fixture, a high-capacity annular crucible, and a multi-pocket crucible configuration, the system increases the loading capacity of each production batch and accommodates a wider range of optical coating designs. It also reduces chamber-opening frequency and improves continuous production efficiency.
For stripping and auxiliary evaporation, the GX2350 integrates resistance evaporation systems for continuous aluminum-wire feeding and multiple release-agent evaporation sources. This configuration enables better integration of the coating, film-stripping, and subsequent powder-processing stages. The system can achieve a stable daily coating output of more than 2,000 grams, significantly exceeding the production capacity of conventional coating equipment and meeting customer requirements for high-volume and stable manufacturing of color-shifting pigments.
In addition, the equipment integrates an industrial computer, PLC control, and an automatic film-thickness monitoring system to provide comprehensive process control. Film thickness, evaporation rate, and other process parameters can be precisely monitored and consistently managed, reducing fluctuations caused by manual operation and improving batch-to-batch consistency. This helps customers increase production efficiency while reducing overall manufacturing costs.
Conclusion
A distinctive color-shifting effect can create a strong competitive advantage for a product. However, color-shifting pigments represent more than visual appeal; they also reflect the capabilities of advanced material engineering and precision manufacturing. As the cosmetics, anti-counterfeiting, and high-end decorative industries continue to evolve, competition is no longer based solely on color-changing performance. Stable mass production, batch consistency, and comprehensive cost control have become equally important.
By applying advanced vacuum coating technology, optically variable effects can be transformed from creative concepts into reliable industrial production. With extensive experience in optical coating equipment development and process engineering, Zhenhua Vacuum provides stable and efficient equipment solutions for color-shifting pigments and functional decorative materials, helping customers expand high-performance optically variable materials into a broader range of application fields.
-This article was published by vacuum coating equipment manufacturer Zhenhua Vacuum
Post time: Jul-31-2026
