In the electronics manufacturing sector, the conductivity and reliability of ceramic capacitors and resistors are critical determinants of product lifespan. Traditionally, the industry has relied on electroplating silver or silver paste screen-printing to build a 20μm thick silver layer, ensuring conductivity, durability, and sulfurization resistance. However, with the continuous rise in silver prices, this “thick-layer” approach has become a significant cost burden for manufacturers—each additional micron of silver substantially increases per-unit cost. In the era of high efficiency, the challenge is how to drastically reduce silver consumption without compromising performance.
From “thick plating” to “precision coating,” Zhenhua Vacuum’s sputtering technology offers a technological breakthrough.
To address this challenge, Zhenhua Technology has developed a dedicated continuous vacuum coating line for ceramic capacitors and resistors, providing a fundamentally different solution: replacing conventional processes with proprietary vacuum sputtering technology. Using magnetron sputtering in a high-vacuum environment, silver atoms are deposited as high-energy particles, forming dense, pore-free coatings on the substrate surface.
The core advantage of this approach lies in precision and density. By controlling the silver layer thickness between 500nm and 2μm, the production line reduces silver consumption by more than 60% at the source, directly addressing cost constraints. Compared to the rough structures of electroplated silver or the thickness variation of silver paste printing, vacuum-sputtered layers exhibit minimal thickness deviation, with a production cycle as fast as three minutes. Additionally, these layers demonstrate superior sulfurization resistance, fundamentally eliminating the risk of failure due to silver ion migration, achieving a technical leap of “less material, stronger performance.”
Beyond technological innovation, manufacturing efficiency relies on professional expertise. In vacuum coating, the shortage of skilled personnel remains a bottleneck for sustainable industry development. Leveraging 30 years of experience in the vacuum coating sector, Zhenhua Technology provides comprehensive technical support throughout the production lifecycle. The continuous vacuum coating line for ceramic capacitors and resistors is supported by a national-level process laboratory and a team of senior engineers, mastering core processes including PVD, PECVD, and ALD. From R&D verification to mass production monitoring, the system ensures process stability and professional support at every stage, covering clients’ needs from sample prototyping to full-scale production.
The production line also incorporates multiple proprietary patents, enabling double-sided synchronous deposition within the same vacuum cycle and the sequential deposition of two to three metal layers in a single run. Its modular design allows flexible adjustment of functional chambers, adapting to both laboratory-scale research and large-scale industrial production, ensuring high-precision, consistent electrode deposition.
By reducing costs while enhancing efficiency, this technology supports sustainable development in the electronics industry. Zhihua’s customer-oriented approach enables flexible adjustment of equipment parameters and process routes, integrating multiple coating techniques to achieve multifunctional requirements. Intellectual property and technical data are fully protected throughout the development lifecycle, providing a secure and reliable collaboration ecosystem.

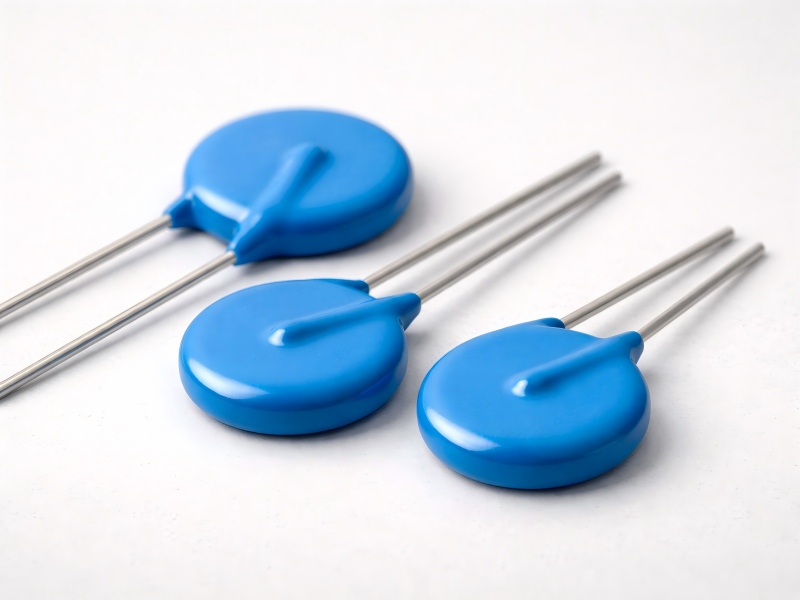

This continuous vacuum coating line has resolved the silver cost dilemma through technological innovation and performance enhancement. It has been successfully applied to ceramic capacitors, varistors, thermistors, thin-film resistors, and other electronic components across sectors such as mobile devices, automotive, and semiconductors. The system meets stringent performance requirements including high-frequency signal transmission, corrosion resistance, and low loss, and is compatible with different ceramic product sizes, making it a versatile cross-industry solution. Its broad applicability and technological vitality open new growth avenues for the industry. A sustainable path of cost reduction, quality enhancement, and efficiency improvement is emerging, positioning early adopters at the forefront of industrial transformation and future competitiveness.
-This article was published by vacuum coating equipment manufacturer Zhenhua Vacuum
