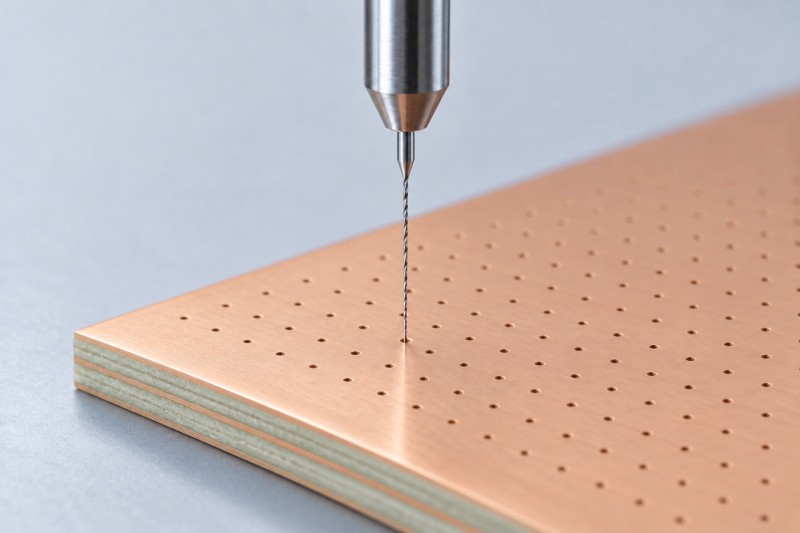

The demand for high-end PCBs continues to grow in applications such as AI servers and high-speed communications. Changes in laminate materials, layer counts, and drilling requirements are driving micro drills toward smaller diameters, higher aspect ratios, and higher-performance coatings. Tool life and machining quality of micro drills have therefore become increasingly important factors in high-end PCB manufacturing.
Rising Micro Drill Consumption and Procurement Costs Increase Cost-Reduction Pressure

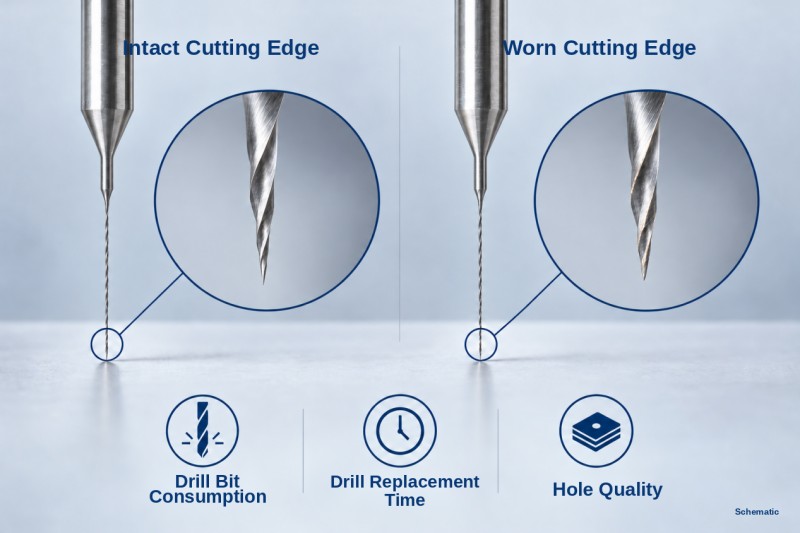

When processing high-performance laminates such as M8 and M9, micro drill cutting edges are subject to accelerated wear, resulting in shorter effective tool life and more frequent tool replacement, which further increases micro drill consumption.
At the same time, rising raw material costs have been reflected in the selling prices of some PCB cutting tools. Higher micro drill procurement costs, increased tool consumption, and the downtime associated with tool replacement can accumulate significantly during high-volume production.
Micro drill wear can also affect hole-wall quality. If this leads to defective PCBs or product scrappage, the resulting losses become part of the overall machining cost. Therefore, cost reduction should focus on the comprehensive processing cost per qualified hole, taking into account tool amortization, downtime for tool replacement, and scrap losses. While maintaining the required hole quality, enabling each micro drill to produce more effective holes can help reduce the overall cost per qualified hole.
Zhenhua MFA0605: Optimizing Micro Drill Coatings for Lower Cost per Hole

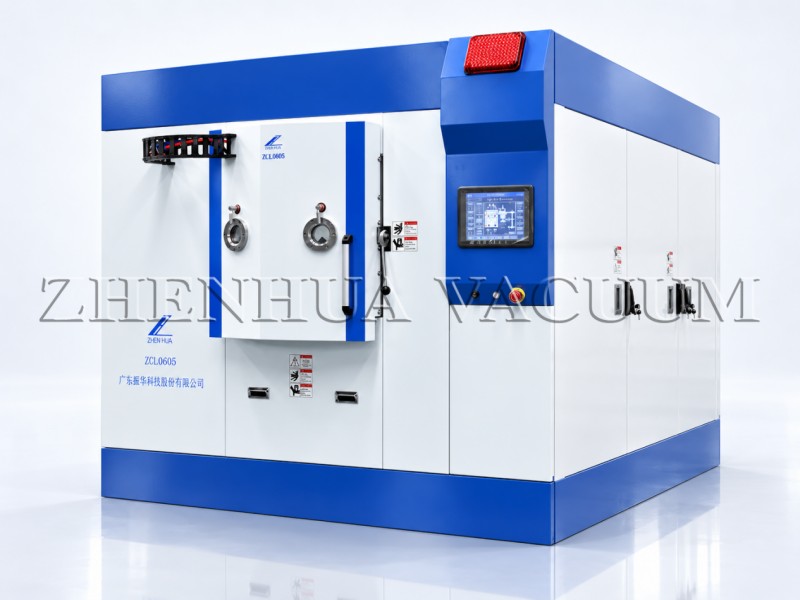

To address challenges related to micro drill consumption, tool replacement downtime, and hole quality control, Zhenhua Vacuum’s MFA0605 hard coating system provides a performance-enhancement solution for micro drill manufacturers. The system is designed to deposit a wear-resistant, low-friction ta-C coating while controlling coating surface particle levels.
1. Enhanced Wear Resistance to Reduce Tool Cost per Hole

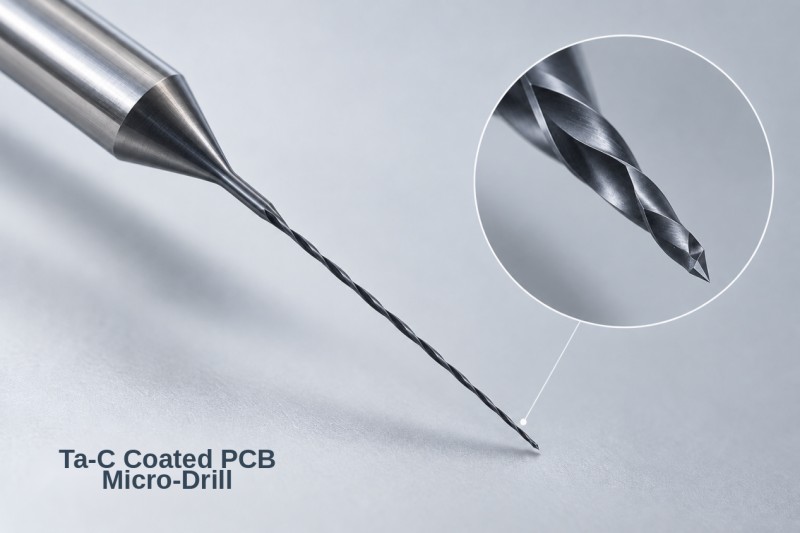

The system is capable of depositing ta-C coatings with a hardness of up to approximately 63 GPa, enhancing the wear resistance of the micro drill surface and helping to slow cutting-edge wear. When the coating is properly matched to the actual machining conditions, the number of effective holes machined per tool can be increased, helping to reduce the tool cost allocated to each qualified hole.
2. Reduced Friction and Wear to Minimize Tool Replacement Downtime
The low-friction characteristics of ta-C coatings can help reduce friction between the micro drill, laminate material, and drilling debris, creating more favorable conditions for chip evacuation and continuous drilling. As the effective service life of the micro drill is extended, the frequency of tool replacement caused by wear can be reduced accordingly, potentially minimizing production downtime associated with tool changes.
3. Particle Control to Support Hole Quality and Reduce Scrap Losses

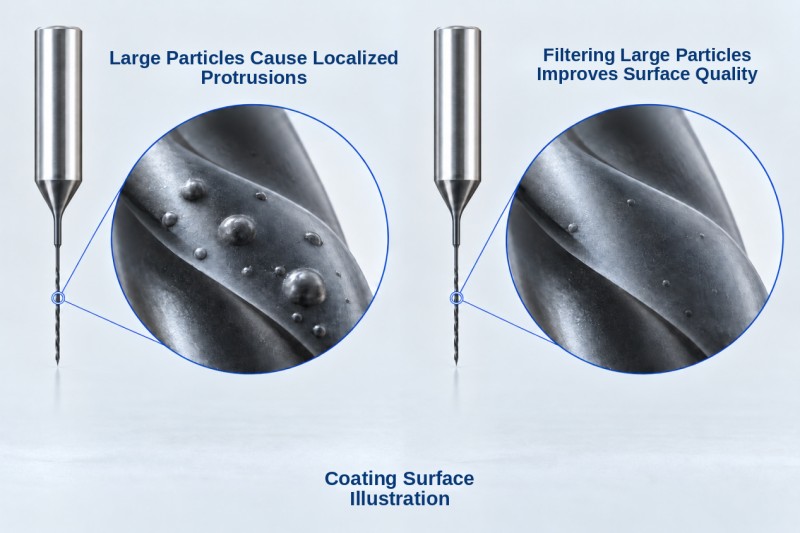

Micro drill cutting edges and flutes have highly refined geometries. Large particles generated during arc deposition can form localized protrusions on the coating surface, potentially affecting its tribological and wear performance. Zhenhua Vacuum’s MFA0605 is equipped with a proprietary curved-pipe particle filtration system designed to effectively filter large particles and reduce related surface defects. Combined with process controls for coating thickness, adhesion, and other key parameters, the system provides support for maintaining micro drill performance and hole quality, with the objective of reducing tool-condition-related defect risks and minimizing associated scrap losses.
Conclusion
Changes in high-end PCB machining conditions are also driving micro drill coating technologies toward solutions that are more closely aligned with actual application requirements. Based on the MFA0605 hard coating system, Zhenhua Vacuum will continue to optimize coating deposition technologies and process control for different micro drill specifications and applications. While enhancing coating performance, we will also focus on batch-to-batch consistency and production scalability, providing PCB cutting tool manufacturers with reliable support for product development and high-volume manufacturing.
-This article was published by vacuum coating equipment manufacturer Zhenhua Vacuum
