Enhancing Micro-Drill Performance for Advanced PCB Manufacturing with High-Performance Vacuum Coating Technology

Enhancing Micro-Drill Performance for Advanced PCB Manufacturing with High-Performance Vacuum Coating Technology

As the PCB industry continues its evolution toward high-density interconnect (HDI), IC substrates, and advanced packaging technologies, the micro-drill has become a critical processing tool whose precision, durability, and stability directly affect production efficiency and product quality. Driven by the growing demands of 5G communications, artificial intelligence, new energy vehicles, and high-end server markets, the requirements for micro-hole machining quality and consistency are increasingly stringent, making performance upgrades for micro-drills an industry-wide consensus.

Traditional coating equipment faces challenges under high-speed, high-temperature, and high-frequency machining conditions, including accelerated wear, cutting-edge blunting, and breakage, resulting in reduced processing efficiency and fluctuations in product yield. Moreover, as PCB materials continue to advance—such as high-TG laminates and filler-enhanced substrates—the demands on micro-drills for wear resistance, anti-adhesion, and thermal stability have increased significantly.

In this context, the application of advanced vacuum coating technology for functional surface modification of micro-drills has emerged as a key solution for enhancing tool performance and reducing overall machining costs. High-performance coatings can significantly extend tool lifetime, improve cutting stability, and enhance machining precision, enabling manufacturers to achieve both cost reduction and quality improvement objectives.

Zhihua Vacuum has developed micro-drill-specific coating equipment based on a mature PVD coating technology platform, optimized for micro-drill applications to deliver highly uniform, high-adhesion, and highly repeatable coatings. This ensures that the stringent performance requirements of high-end PCB manufacturing are fully met.

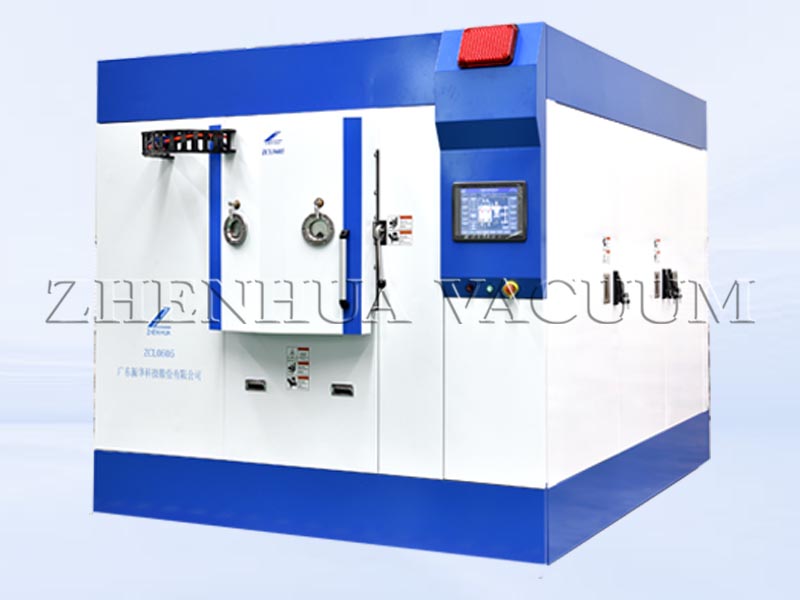

Zhihua FMA0605 Hard Coating Equipment

Equipment Advantages:

Arc filtering for large particles, Ta-C coatings combining high efficiency with superior performance
Achieves ultra-high hardness, low friction coefficient, and excellent corrosion resistance
Average hardness up to 63 GPa
Coating capabilities include high-temperature ultra-hard coatings such as AlTiN, AlCrN, TiCrAlN, TiAlSiN, and CrN, widely applied in molds, cutting tools, punches, automotive components, pistons, and other precision products

By leveraging advanced vacuum coating processes, Zhihua Vacuum’s micro-drill coating solutions provide enhanced tool durability, precision, and operational stability, supporting the PCB industry in achieving higher efficiency, superior product quality, and sustainable cost optimization.

-This article was published by vacuum coating equipment manufacturer  Zhenhua Vacuum
